Precast Mold Vibration Motors – PSV Series

PSV Series Vibration Motors; It is used for concrete casting in the formworks of road, tunnel and bridge constructions that require high compression and durability. PSV Series Vibration Motors made of GGG-40 Nodular cast iron are fully insulated with o-rings on the balance protector, bearing and terminal covers and are not affected by water, steam, dust and natural conditions. Kem-P PSV Series Construction vibration motors, preferred for their high working efficiency and ease of installation, have ATEX II 2D Ext b IIIC T 120C Db and IP66 certificates for applications in hazardous environments with flammable and explosive dust.

Type	Size	Phase	Voltage ( V )	Frequency (Hz)	Current (A)	Input Power (kW)	rpm	Centrifugal Force (Kg)	Centrifugal Force (KN)	Weight (Kg)
KVM-PSV 70/1	01	3	42 / 48	200	15	0,92	12000	2580	25,310	20,4
KVM-PSV 70/2	01	3	42 / 48	150	15	0,92	9000	1815	17,805	20,4
KVM-PSV 70/3	01	3	42 / 48	200	15	0,92	6000	1130	11,085	20,4
KVM-PSV 80/2	01	3	42 / 48	150	25	1,80	9000	2185	21,435	20,6
KVM-PSV 80/3	01	3	42 / 48	200	23,5	1,70	6000	1525	14,960	20,6

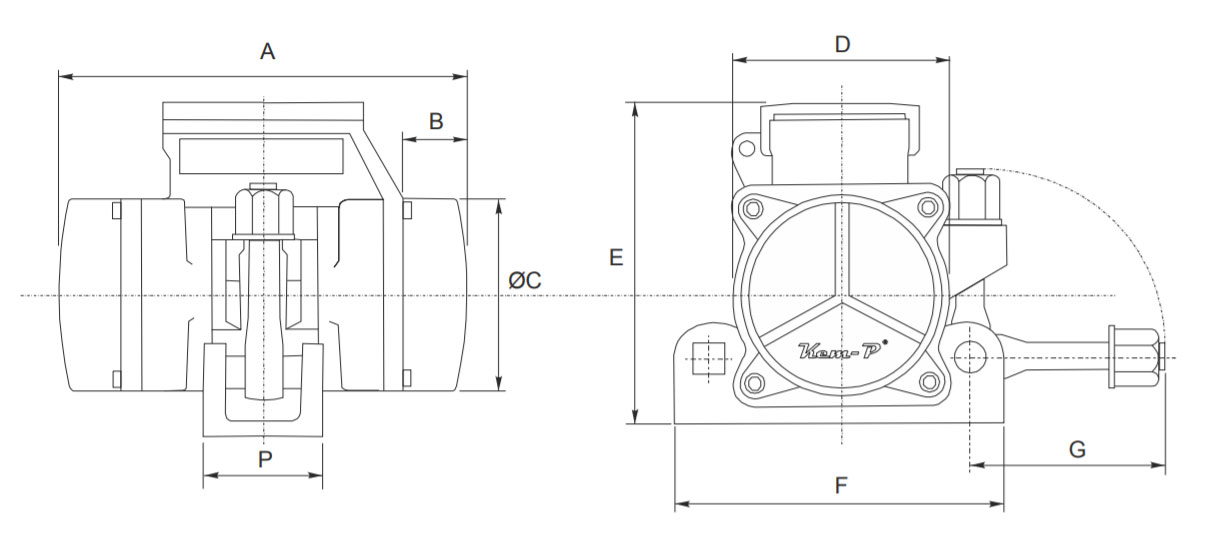

	Overall Dimensions (mm)
Type	Size	A	B	ØC	D	E	F	G	P
KVM-PSV-70	01	298	55	130	132	211	226	105	105
KVM-PSV-80	01	298	55	130	132	211	226	105	105
