K Series

Product Code : KM0008-004

Product Groups : Yılmaz Redüktör

Specifications

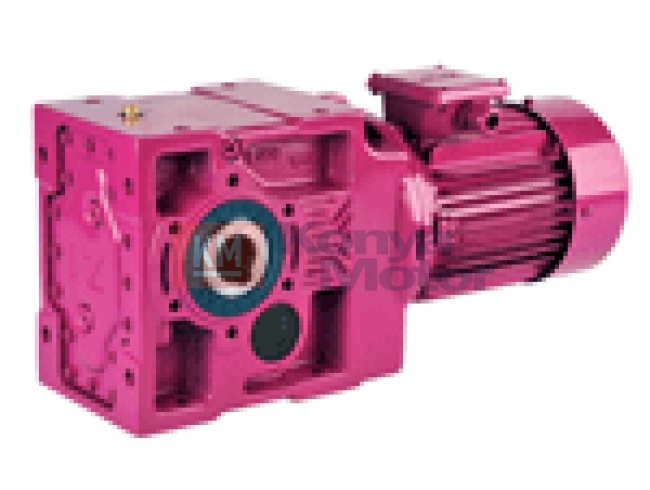

K Series gearboxes are bevel gearboxes with monoblock housing. They are intended for applications requiring higher efficiency and strength. Their input and output shafts are perpendicular to each other. K Series gearboxes combine the advantages of the E Series’ mounting options with the monoblock housing, higher efficiency and higher torque capabilities of the M series. They offer flexible connection options (IEC B5 or B14, direct or solid input shaft mounting). Bevel gearboxes can have a maximum of three stages in a single housing. Larger sizes are available only with three stages in a monoblock housing. A higher number of transmission ratios (up to six) can be implemented through the use of additional housings.

Specifications and Advantages		Options and Accessories
Monoblock housing design, Wide ratio, torque range and two or three stages can be in same housing Reduction can be increased up to six stages, Standard IEC B5 or B14 motor flanges, Electromagnetic brake option, Long life bearings GG20 and GGG40 cast iron housing, 58-62 HRc hardened and grinded gears.		Output shaft and flange options, Servomotor specific connection flanges, Electromagnetic brake motors (24V/220V/380V), Backstop application, 500-1024 pulse encoder applications, External fan cooling option for frequency inverter applications.
KR Series		KV Series
Bevel geared motors, direct coupled flange		Bevel geared motors, IEC B5/B14 flanged input
KN Series		KT Series
Bevel geared units, IEC B5/B14 flanged input		Bevel geared units, solid input shaft

Gearbox Size	K00...	K10...	K20...	K27...	K37...	K47...	K57...	K67...	K77...	K87...
Ratio Range [i]	7 - 121	6 - 129	5 - 139	7 - 1.759	6 - 3.467	6 - 5.227	7 - 6.612	8 - 12.681	7 - 15.619	10 - 12.789
Nominal Torque [Nm]	80	140	280	450	820	1.550	2.700	4.300	8.000	15.000
Hollow Shaft Diameter [mm]	Ø20	Ø30	Ø35	Ø35	Ø40	Ø50	Ø60	Ø70	Ø90	Ø110
