Frequency-Controlled Smart Package Hydrophore

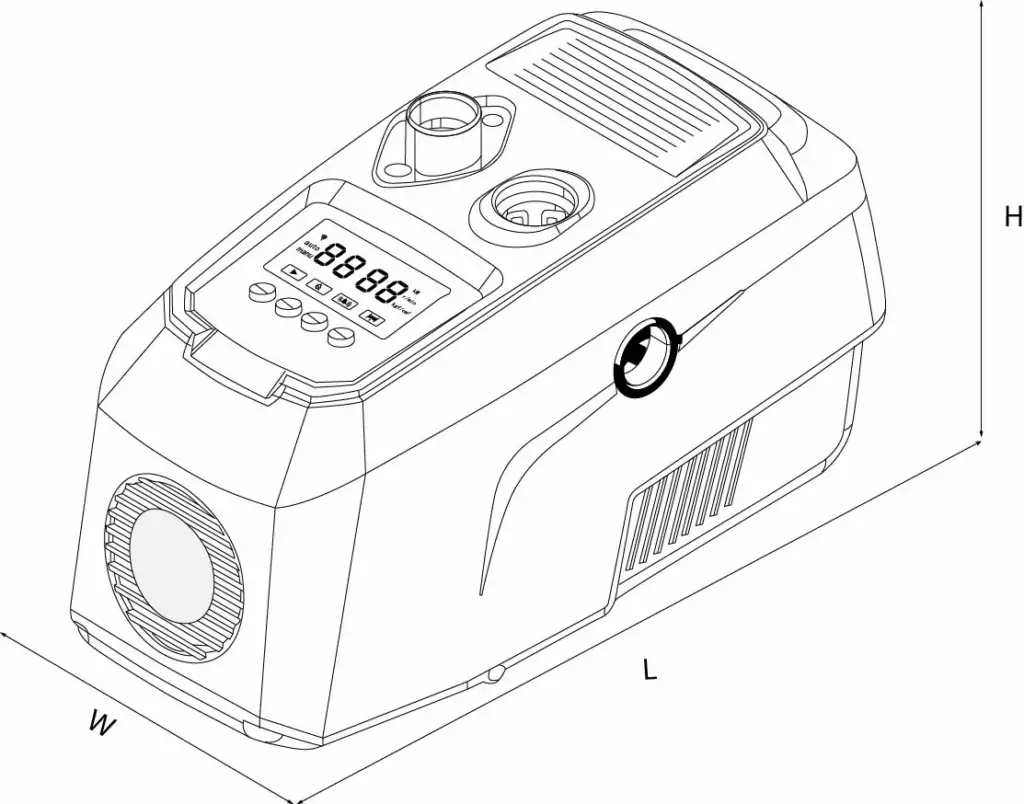

Technical Drawing 3D Data

Sumak

Definition

The frequency-controlled hydrofoil is designed to maximize energy savings and provide a constant pressure water supply for variable flow requirements in residential areas with storage tanks, where the municipal water supply is insufficient and there is a risk of interruption.

Applications

It is used in residential areas, apartment buildings, villas, and small-scale automatic irrigation systems.

Pump Body	TEKNOPOLİMER
Wheel	AISI 304 INOX
Shaft	AISI 304 INOX
Flow Rate (max)	5.2 m³/saat
Total Head(max)
Liquid Temperature
Protection Class	IP54
Insulation	CI.F
Mechanical Seal	SERMAMİK KARBON
Pump Pressure Rating (Pmax)	6 bar

Pump Technical Specifications

MOTOR							PUMP
TYPE	KW	HP	V	Hz	A	d/d	input	output	Hm	W	L	H	KG	m3/h	1	2	3	4	5
SMH BOX120	0.9	1.2	220	50	6.8	1450 2900	1″	1″	54	211	427	224	8.6	mss	48	41	32	22	–
