Scroll Pumps 1450 rpm

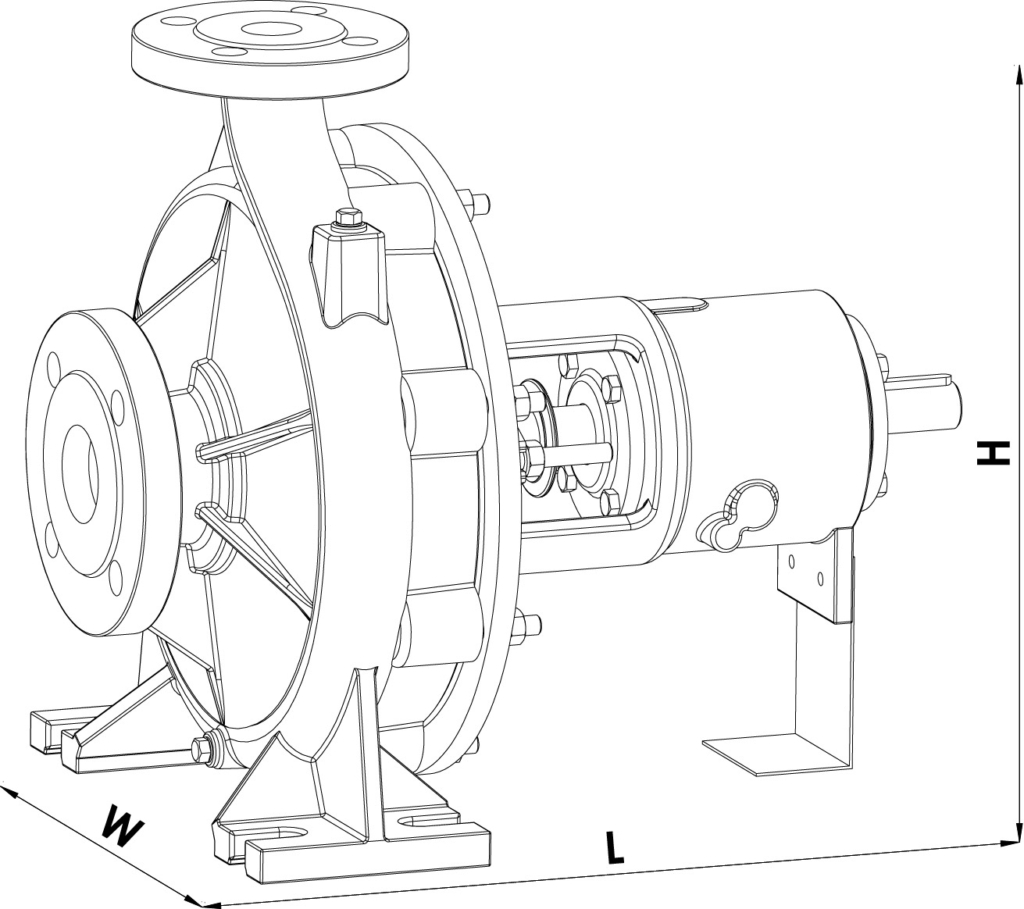

Technical Drawing 3D Data

Sumak

Definition

These pumps are high altitude and high flow pumps with cast iron body, cast iron impeller, horizontal shaft, single stage, end suction and coupling connection.
It is designed to be used in pressurizing low viscosity liquids that are non-corrosive, non-flammable, and do not contain solid particles and fibers.
These pumps are manufactured at frequencies of 50 Hz and 60 Hz.

Usage Areas

These pumps are used in industrial facilities, social facilities, washing systems, agricultural and drip irrigation, treatment facilities, mining and iron and steel industry, boiler feeding and condensate, heating and cooling systems, booster and fire systems.These pumps are used in industrial facilities, social facilities, washing systems, agricultural and drip irrigation, treatment facilities, mining and iron and steel industry, boiler feeding and condensate, heating and cooling systems, booster and fire systems.

Pump Body	GG25 CAST IRON
Impeller	GG25 CAST IRON
Shaft	AISI 420
Flow Rate (max)	90 m³/hour
Total Head(max)	12 m
Liquid Temperature	0-45°C (*120°C)
Seal	SOFT SEAL-MECHANICAL SEAL
Input Flange	DN 100 PN 16
Output Flange	DN 80 PN 16
Pump Durability Presure (Pmax)	16 bar

Techical Specifications

MOTOR					PUMP
Type	KW	V	Hz	rpm	Hm	input	output	W	L	H	KG	m³/h	20	40	60	80	90
SMT160/80	1.5	380	50	1450	9	DN100	DN80	325	495	405	48	mss	8.5	7.5	5.5	–	–
	2.2	380	50	1450	11	DN100	DN80	325	495	405	49		10.5	10	8.5	6	3
	3	380	50	1450	12	DN100	DN80	325	495	405	50		11.5	11	10	7.5	6
