MV Series

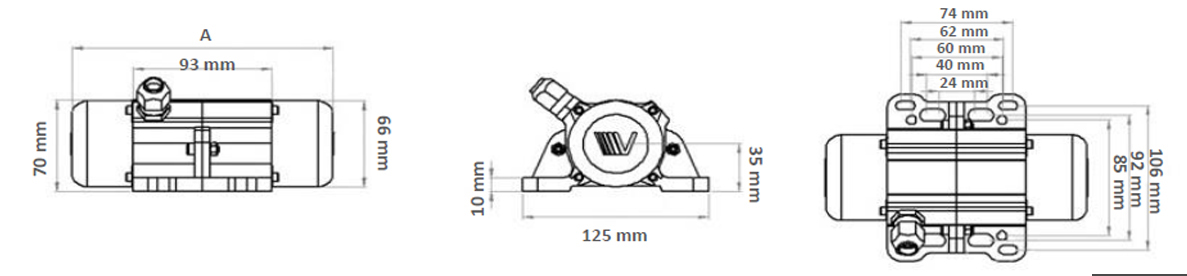

Technical Drawing 3D Data

MV Series

Vibramod Micro Vibration Motors; are components that provide vibratory feedback in devices with their small size and high efficiency.

Vibramod; offers micro vibration motor solutions tailored to every need with various size, voltage, and frequency options.

Compact Design:

Vibramod Micro Vibration Motors are manufactured in very small sizes, making them easy to use even in limited spaces. This feature is particularly advantageous for portable devices.

Low Energy Consumption:

Vibramod Micro Vibration Motors operate at low voltage, ensuring high energy efficiency. This provides a significant advantage in battery life, especially for portable devices.

High Precision and Sensitivity:

Vibramod Micro Vibration Motors can generate very fine vibrations with high precision, making them ideal for sensitive applications such as medical devices or biometric sensors.

Fast Response Time:

Vibramod Micro Vibration Motors have the ability to generate vibrations within a very short response time.

MODEL	A	STATIC MOMENT (Kgmm)	WORKING MOMENT	CENTRIFUGAL FORCE (KgF)	CENTRIFUGAL FORCE (N)	RPM	VOLTAGE	FREQUENCY	MAX. POWER	MAX. CURRENT
MV-T 3/10	160	1,1	0,212	11	105	3000	400	50~60 Hz	25	0,11
MV-T 3/20	160	2,12	0,424	22	209	3000	400	50~60 Hz	25	0,11
MV-T 3/40	180	4,25	0,85	43	420	3000	400	50~60 Hz	50	0,19
MV-T 3/60	180	6,38	1,3	64	429	3000	400	50~60 Hz	50	0,19
MV-T 15/25	210	8,5	1,7	24	236	1500	400	50~60 Hz	50	0,19
MV-M 3/10	160	1,1	0,212	11	105	3000	230	50~60 Hz	25	0,11
MV-M 3/20	160	2,12	0,424	22	209	3000	230	50~60 Hz	25	0,11
MV-M 3/40	180	4,25	0,85	43	420	3000	230	50~60 Hz	50	0,19
MV-M 3/60	180	6,38	1,3	64	429	3000	230	50~60 Hz	50	0,19
MV-M 15/25	210	8,5	1,7	24	236	1500	230	50~60 Hz	50	0,19
MV-H 3/10	160	1,1	0,212	11	105	3000	3X220	50~60 Hz	25	0,11
MV-H 3/20	160	2,12	0,424	22	209	3000	3X220	50~60 Hz	25	0,11
MV-H 3/40	180	4,25	0,85	43	420	3000	3X220	50~60 Hz	50	0,19
MV-H 3/60	180	6,38	1,3	64	429	3000	3X220	50~60 Hz	50	0,19
