VMA-M Series

Vibramod Single-Phase Vibration Motors, re powerful mechanical devices that hold a significant place in today’s industrial world and offer a wide range of applications. Especially in processes requiring vibration, single-phase motors are preferred for their efficiency and practicality. Vibramod Single-Phase Vibration Motors, are effectively used across various industries, from industrial machinery to the construction sector.

Compact Design:

Vibramod Single-Phase Motors are generally designed to be more compact and smaller in size, allowing for easy installation even in confined spaces.

Low Maintenance Costs:

Due to their simpler structure compared to three-phase motors, single-phase Vibramod motors require less maintenance and repairs, making the process faster and more cost-effective.

Energy Efficiency:

Operating on single-phase power, Vibramod Single-Phase Motors consume less energy, helping businesses reduce operational costs and achieve economic benefits.

Easy Application:

Vibramod Single-Phase Motors require less complex electrical infrastructure, making installation and integration simpler and more convenient.

3000 rpm-50Hz / 3600 rpm-60Hz

MODEL	SICAKLIK SINIFI (Celcius)	ÇALIŞMA MONTAJI WORKING MOMENT	STATİK MOMENT STATICAL MOMENT (Kgmm)	SANTRİFUJ KUVVET CENTRIFUGAL FORCE Kgf	SANTRİFUJ KUVVET CENTRIFUGAL FORCE KN	AĞIRLIK WEIGHT (Kg)	Max. Giriş Gücü Max. INPUT POWER (Kw) 250V - 50Hz	Max. AKIM Max. CURRENT (A) 250V - 50Hz
VMA-M 3/65	120	1,27	6,35	70	0,69	6,60	0,18	0,55
VMA-M 3/130	120	2,99	14,99	142	1,39	6,80	0,27	0,72
VMA-M 3/200	120	4,50	22,50	226	2,22	7,20	0,36	0,85
VMA-M 3/300	120	6,68	33,40	328	3,22	8,90	0,47	0,95
VMA-M 3/400	120	1,27	6,35	70	0,69	6,60	0,18	0,55
VMA-M 3/500	120	11,798	58,99	523	5,13	11,80	0,47	0,95

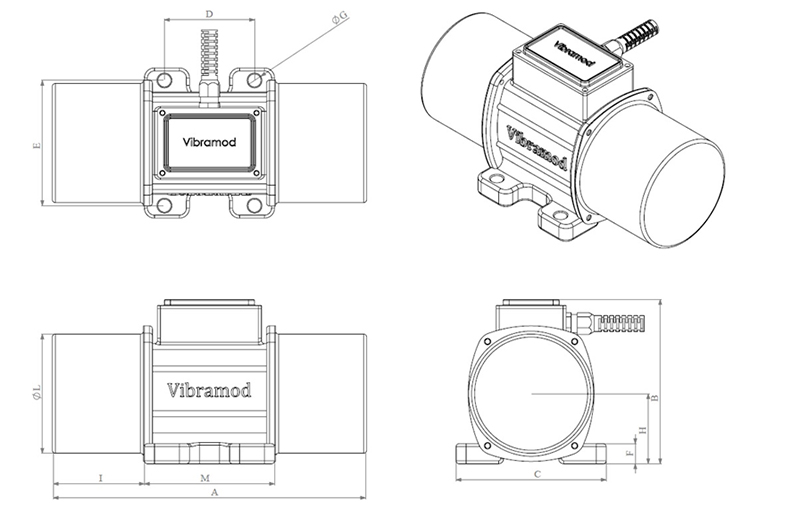

MODEL	A	B	C	D	E	F	G	H	I	L	M	RAKOR CABLE ENTRY
VMA-M 3/65	230	145	126	62-74	106	18	9	60	60	100	110	M20x1,5
VMA-M 3/130	230	145	126	62-74	106	18	9	60	60	100	110	M20x1,5
VMA-M 3/200	230	145	126	62-74	106	18	9	60	60	100	110	M20x1,5
VMA-M 3/300	230	164	150	90	125	20	13	70	60	120	130	M20x1,5
VMA-M 3/400	230	164	150	90	125	20	13	70	60	120	130	M20x1,5
VMA-M 3/500	230	193	190	100-105	160-140	30	13	70	60	147	150	M20x1,5

1500 rpm-50Hz / 1800 rpm-60Hz

MODEL	SICAKLIK SINIFI (Celcius)	ÇALIŞMA MONTAJI WORKING MOMENT	STATİK MOMENT STATICAL MOMENT (Kgmm)	SANTRİFUJ KUVVET CENTRIFUGAL FORCE Kgf	SANTRİFUJ KUVVET CENTRIFUGAL FORCE KN	AĞIRLIK WEIGHT (Kg)	Max. Giriş Gücü Max. INPUT POWER (Kw) 250V - 50Hz	Max. AKIM Max. CURRENT (A) 250V - 50Hz
VMA-M 15/35	120	8,90	44,53	436	4,28	9,35	0,18	0,55
VMA-M 15/60	120	11,80	58,99	523	5,13	11,80	0,18	0,55
VMA-M 15/80	120	1,27	6,35	70	0,69	6,60	0,18	0,55
VMA-M 15/100	120	2,99	14,99	142	1,39	6,80	0,27	0,72
VMA-M 15/200	120	4,50	22,50	226	2,22	7,20	0,36	0,85
VMA-M 15/250	120	6,68	33,40	328	3,22	8,90	0,47	0,95
VMA-M 15/300	120	23,60	118	297	2,91	14,20	0,27	0,72

MODEL	A	B	C	D	E	F	G	H	I	L	M	RAKOR CABLE ENTRY
VMA-M 15/35	230	145	126	62-74	106	18	9	60	60	110	110	M20x1,5
VMA-M 15/60	230	145	126	62-74	106	18	9	60	60	110	110	M20x1,5
VMA-M 15/80	270	145	126	62-74	106	18	9	60	80	110	110	M20x1,5
VMA-M 15/100	270	145	126	62-74	106	18	9	60	80	110	110	M20x1,5
VMA-M 15/200	370	193	190	100-105	160-140	30	13	90	110	147	150	M20x1,5
VMA-M 15/250	370	193	190	100-105	160-140	30	13	90	110	147	150	M20x1,5
VMA-M 15/300	370	193	190	100-105	160-140	30	13	90	110	147	150	M20x1,5
