VMD Series

Technical Drawing 3D Data

VMD Series

The milling industry plays a critical role, especially in food processing, feed production, flour, cement, and mining industries. In these sectors, material grinding, transportation, and separation processes must be carried out with high efficiency and safety standards. Vibramod Vibration Motors, enable these processes to be performed more efficiently, quickly, and precisely. Vibration motors used in mills play a crucial role in material handling, separation, compaction, and grinding processes.

High Efficiency:

Vibramod Vibration Motors ensure the consistent feeding and grinding of materials. This enhances product quality while also increasing production speed.

Low Maintenance Costs:

Durable and long-lasting Vibramod Vibration Motors help reduce machine failures and maintenance requirements, lowering operational costs for businesses.

Consistent Product Quality:

Vibramod Vibration Motors provide uniform and consistent mixing of materials, ensuring better product quality and more stable production processes.

Energy Savings:

Thanks to advanced motor designs, these motors offer high performance with low energy consumption, significantly reducing energy costs for businesses.

MODEL	SICAKLIK SINIFI (Celcius)	ÇALIŞMA MONTAJI WORKING MOMENT	STATİK MOMENT STATICAL MOMENT (Kgmm)	SANTRİFUJ KUVVET CENTRIFUGAL FORCE (KgF) 50Hz	SANTRİFUJ KUVVET CENTRIFUGAL FORCE KN (50Hz)	AĞIRLIK WEIGHT (Kg)	Max. Giriş Gücü (Kw) Max. INPUT POWER (Kw) 400V - 50Hz	Max. Giriş Gücü (Kw) Max. INPUT POWER (Kw) 400V - 60Hz	Max. AKIM (A)Max. CURRENT (A) 400V 50Hz	Max. AKIM (A) Max. CURRENT (A) 400V 50Hz / 60Hz
VMD 550	120	270,30	1351,50	544,00	13,26	32,00	0,30	33,60	1,30	1,37
VMD 650	120	324,36	1621,80	653,00	15,91	35,00	0,30	36,75	1,50	1,58
VMD 800	120	405,26	2026,30	816,00	19,88	47,00	0,55	49,35	1,70	1,79
VMD 1000	120	506,80	2534,00	1020,00	24,86	52,00	0,55	54,60	2,00	2,10

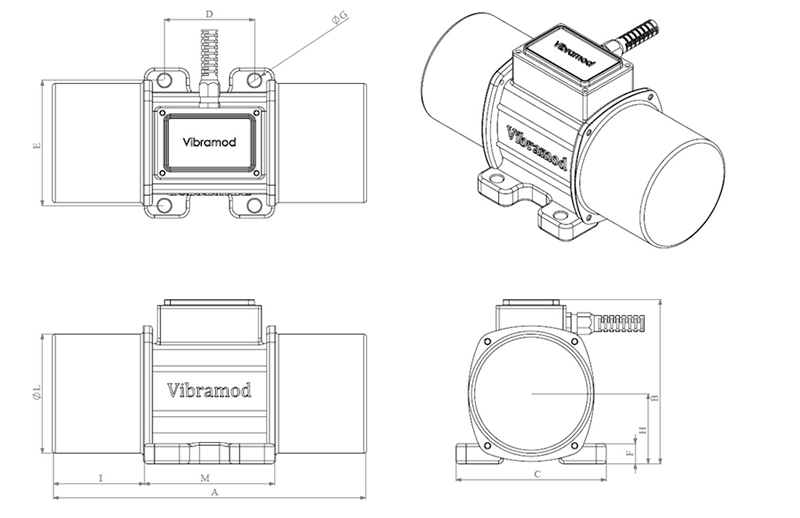

MODEL	A	B	C	D	E	F	G	H	I	L	M	RAKOR CABLE ENTRY
VMD 550	392	225	215	120	170	35	17	116	110	240	172	M20x1,5
VMD 650	392	225	215	120	170	35	17	116	110	240	172	M20x1,5
VMD 800	440	240	240	140	190	42	17	117	110	240	220	M20x1,5
VMD 1000	440	240	240	140	190	42	17	117	110	240	220	M20x1,5
