ADC Direct Current Vibration Motors

Technical Drawing 3D Data

AVIBRO foot mounted vibration motors offer a full range of premium quality foot mounted vibrator motors that meet the needs of all industrial machinery where vibration power is required.

We declare that all our ADC series products comply with the essential health and safety requirements of the applicable EEC Directives (safety of machinery 2006/42/EC; and 2014/35/EU Low voltage directives) and are able to fulfill the requirements for free movement. *Decleration will loose its validity if there will be any change by product.

For All ADC series :

II2D Ex tb IIIC (T120 °C) Zone 21 Zone 22

Direct Current Vibration Motors Technical Specifications

Three-Phase Input Voltage:
For All ADC series : Standart applications: 50Hz- 220 – 230/380-400 Volt or 60Hz- 220-240/440-480 Volt We are offering you different voltage and frequency on demand ADC Series vibration motors can be operated by variable Frequency inverters (VFD featured).

Frequency and Rotation per Minute (rpm)

For all ADC Series :

Foot Mounted Vibration Motors Adjusting Vibration Force

AVIBRO Vibration motors are designed for gaining most vibration according to working regime S1. Thanks to degress on both end Masses from %0 to %100 you can adjust requied vibration force. Eccentric masses on both side ends of shaft must be at same degrees.

AVIBRO Mechanical Protection

AVIBRO Inside of Electric Motor

We are highly aware of enviromental pollution in our Planet. We are highly aware of enviromental pollution in our Planet. For this reason, AVIBRO offers you more power compared to its competitors with the STATOR-ROTOR design created with the lowest loss silicon magnetic lamination sheets, while offering products with increased efficiency by reducing heating.

AVIBRO Vibration Motors Isolation Class

ADC series vibration motors have powerful standard H class insulation. On demand, you can choose a stronger insulation class. Eccentric weight covers, bearing covers and terminal covers are mechanically protected against external damage with o-ring seals. Inside the terminal box, it is protected by Epoxy resin against breakage against leakage and vibration. IP 65-7

AVIBRO Vibration Motors Enviromental Working Temperature

For ADC Series -20 C° ile +40 C° ( -4 F ile 104 C° )

AVIBRO Vibration Motors Thermal Protection

For ADC series products, we do not have a standard thermistor application. For AVM-P series products, we do not have a standard thermistor application.

AVIBRO Vibration Motors Body and Rotating Shaft

For ADC series, all other series and new products, stress analyzes are made on the product bodies and bearing covers on the 3D CAD program. Afterwards, we manufacture our 50 frame size body and bearing covers, our special alloy aluminum injection molding 60 and 110 structure size body and bearing covers from high resistant GGG 40 ductile cast iron. Our rotating shafts (rotor shaft) use NiCrMo special steel round raw material with high resistance to torsion and rupture with heat treatment.

AVIBRO Vibration Motors Painting

We use electrostatic epoxy powder paint in almost all of our ADC Series products. Body color code: ORANGE Covers color Code: ORANGE

AVIBRO Vibration Motors Bearing and Lubrication

AVIBRO vibrator motors use bearings with C4 backlash produced for long-lasting vibration in all standard products. Thus, we produce long-lasting vibration motors for our customers. For our vibration motor bearings, we use long-lasting, high-strength greases against high centrifugal forces, stress caused by vibration, and abrasions that may occur from loads on bearing internal grains. We use labyrinth type channels and oil seals to ensure that the grease runs in the bearings without any leakage.

AVIBRO Vibration Motors On Demand Manufacturing We Offer

Pre-heaters
Stainless side covers Cr
Different foot-prints for your special applications

design productions

ADC -12 V. - 24 V. / 1500 - 3000 rpm - (2 Poles - 4 Poles) 24V - DC

Model / Type	Gövde / Size	Devir (rpm)	Santrifüj Kuvveti / Centrifugal Force (Kg/F)	Santrifüj Kuvveti / Centrifugal Force (kN)	(*)Statik Moment / Statical Moment (m¹) (Kgmm)	Ağırlık / Weight (Kg)	Giriş Gücü Input / Power (W)	Nominal Akım / Nom. Current (A)
ADC 90/24	10	1500	87	0,85	34,6	9,8	95	2,40
ADC 130/24	10	3000	153	1,50	15,2	5,7	120	4,80
ADC 200/24	10	3000	214	2,09	21,3	6,0	190	7,20
ADC 500/24	30	3000	500	5,54	56,2	14,6	270	11,30
ADC 1500/24	40	3000	1655	16,23	164,5	33,6	530	22,00

ADC -12 V. - 24 V. / 1500 - 3000 rpm - (2 Poles - 4 Poles) 24V - DC

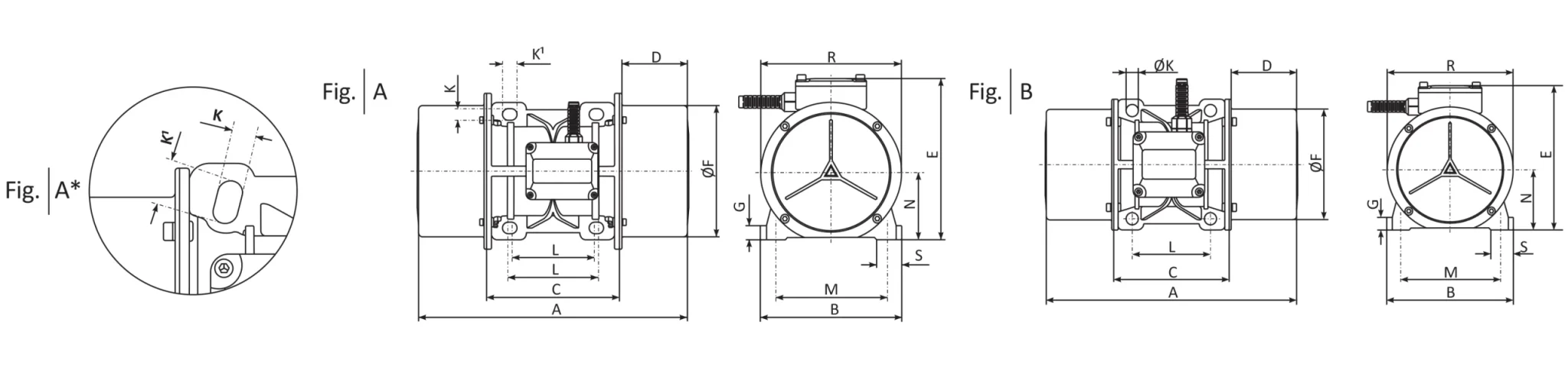

Model / Type	Gövde Size	Fig	A	B	C	D	E	ØF	R	L	M	ØK	ØK	K¹	G	S	N
ADC 90/24	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC 130/24	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC 200/24	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC 500/24	30	A*	286	190	153	66,5	203,5	155	185	100÷105	140÷160	12	4	22,5	22	38	93,5
ADC 1500/24	40	B	363	210	188	87,5	228,5	183	220	120	170	17	4	-	26	37	107,5

ADC -12 V. - 24 V. / 1500 - 3000 rpm - (2 Poles - 4 Poles) 12V - DC

Model / Type	Gövde / Size	Devir (rpm)	Santrifüj Kuvveti / Centrifugal Force (Kg/F)	Santrifüj Kuvveti / Centrifugal Force (kN)	(*)Statik Moment / Statical Moment (m¹) (Kgmm)	Ağırlık / Weight (Kg)	Giriş Gücü Input / Power (W)	Nominal Akım / Nom. Current (A)
ADC 90/12	10	1500	87	0,85	34,6	9,8	95	7,00
ADC 130/12	10	3000	153	1,50	15,2	5,7	120	8,00
ADC 200/12	10	3000	214	2,09	21,3	6,0	190	16,00

ADC -12 V. - 24 V. / 1500 - 3000 rpm - (2 Poles - 4 Poles) 12V - DC

Model / Type	Gövde Size	Fig	A	B	C	D	E	ØF	R	L	M	ØK	ØK	K¹	G	S	N
ADC 90/12	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC 130/12	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC 200/12	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5

ADC/CR -12 V. - 24 V. / 1500 - 3000 rpm - ( 2 Poles - 4 Poles ) 24V - DC

Model / Type	Gövde / Size	Devir (rpm)	Santrifüj Kuvveti / Centrifugal Force (Kg/F)	Santrifüj Kuvveti / Centrifugal Force (kN)	(*)Statik Moment / Statical Moment (m¹) (Kgmm)	Ağırlık / Weight (Kg)	Giriş Gücü Input / Power (W)	Nominal Akım / Nom. Current (A)
ADC-CR 90/24	10	1500	87	0,85	34,6	9,8	95	2,40
ADC-CR 130/24	10	3000	153	1,50	15,2	5,7	120	4,80
ADC-CR 200/24	10	3000	214	2,09	21,3	6,0	190	7,20
ADC-CR 500/24	30	3000	500	5,54	56,2	14,6	270	11,30
ADC-CR 1500/24	40	3000	1655	16,23	164,5	33,6	530	22,00

ADC/CR -12 V. - 24 V. / 1500 - 3000 rpm - ( 2 Poles - 4 Poles ) 24V - DC

Model / Type	Gövde / Size	Fig	A	B	C	D	E	ØF	R	L	M	ØK	ØK	K¹	G	S	N
ADC-CR 90/24	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC-CR 130/24	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC-CR 200/24	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC-CR 500/24	30	A*	286	190	153	66,5	203,5	155	185	100÷105	140÷160	12	4	22,5	22	38	93,5
ADC-CR 1500/24	40	B	363	210	188	87,5	228,5	183	220	120	170	17	4	-	26	37	107,5

ADC/CR -12 V. - 24 V. / 1500 - 3000 rpm - ( 2 Poles - 4 Poles ) 12V - DC

Model / Type	Gövde / Size	Devir (rpm)	Santrifüj Kuvveti / Centrifugal Force (Kg/F)	Santrifüj Kuvveti / Centrifugal Force (kN)	(*)Statik Moment / Statical Moment (m¹) (Kgmm	Ağırlık / Weight (Kg)	Giriş Gücü Input / Power (W)	Nominal Akım / Nom. Current (A)
ADC-CR 90/12	10	1500	87	0,85	34,6	9,8	95	7,00
ADC-CR 130/12	10	3000	153	1,50	15,2	5,7	120	8,00
ADC-CR 200/12	10	3000	214	2,09	21,3	6,0	190	16,00

ADC/CR -12 V. - 24 V. / 1500 - 3000 rpm - ( 2 Poles - 4 Poles ) 12V - DC

Model / Type	Gövde / Size	Fig	A	B	C	D	E	ØF	R	L	M	ØK	ØK	K¹	G	S	N
ADC-CR 90/12	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC-CR 130/12	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
ADC-CR 200/12	10	A	235	123,5	108	63,5	151,5	107	132,5	62÷74	106	8,75	4	14,5	17	22	59,5
