ADX Industrial Vibration Motors

Technical Drawing 3D Data

AVIBRO foot mounted vibration motors offer a full range of premium quality foot mounted vibrator motors that meet the needs of all industrial machinery where vibration power is required.

We declare that all our ADX series products comply with the essential health and safety requirements of the applicable EEC Directives (safety of machinery 2006/42/EC; and 2014/35/EU Low voltage directives) and are able to fulfill the requirements for free movement. *Decleration will loose its validity if there will be any change by product.

For all ADX Series :

II2D Ex tb IIIC (T120 °C) Zone 21 Zone 22

Foot Mounted Vibration Motors Technical Specifications

Three-Phase Input Voltage:
For all ADX Series : Standart applications 50Hz 220 – 230/380-400 Volt or 60Hz 220-240/440-480 Volt
We are offering you different voltage and frequency on demand
APV series can be operated by electronic or electromechanic converters.

Frequency and Rotation per Minute (rpm)

For all ADX Series :
2 poles: 3000 rpm- 50 Hz 3600 rpm – 60 Hz
4 poles : 1500 rpm – 50 Hz 1800 rpm – 60 Hz
6 poles : 1000 rpm – 50 Hz 1200 rpm – 60 Hz
8 poles : 750 rpm – 50 Hz 3600 rpm – 60 Hz

Foot Mounted Vibration Motors Adjusting Vibration Force

AVIBRO Vibration motors are designed for gaining most vibration according to working regime S1. Thanks to degress on both end Masses from %0 to %100 you can adjust requied vibration force. Eccentric masses on both side ends of shaft must be at same degrees.

AVIBRO Mechanical Protection

AVIBRO Inside of Electric Motor

We are highly aware of enviromental pollution in our Planet. We are highly aware of enviromental pollution in our Planet. For this reason, AVIBRO offers you more power compared to its competitors with the STATOR-ROTOR design created with the lowest loss silicon magnetic lamination sheets, while offering products with increased efficiency by reducing heating.

AVIBRO Vibration Motors Isolation Class

AVM series vibration motors have powerful standard H class insulation. On demand, you can choose a stronger insulation class. Eccentric weight covers, bearing covers and terminal covers are mechanically protected against external damage with o-ring seals. Inside the terminal box, it is protected by Epoxy resin against breakage against leakage and vibration. IP 65-7

AVIBRO Vibration Motors Enviromental Working Temperature

For ADX Series -20 C° ile +40 C° ( -4 F ile 104 C° )

AVIBRO Vibration Motors Thermal Protection

For ADX series products, we do not have a standard thermistor application. We offer 130 C PTC Application on AVM-P series products on demand.

AVIBRO Vibration Motors Body and Rotating Shaft

For ADX series, all other series and new products, stress analyzes are made on the product bodies and bearing covers on the 3D CAD program. Afterwards, we manufacture our 50 frame size body and bearing covers, our special alloy aluminum injection molding 60 and 110 structure size body and bearing covers from high resistant GGG 40 ductile cast iron.
Our rotating shafts (rotor shaft) use NiCrMo special steel round raw material with high resistance to torsion and rupture with heat treatment.

AVIBRO Vibration Motors Painting

We use electrostatic epoxy powder paint in almost all of our ADX Series products.
Body color code: ORANGE
Covers color Code: ORANGE

AVIBRO Vibration Motors Bearing and Lubrication

AVIBRO vibrator motors use bearings with C4 backlash produced for long-lasting vibration in all standard products. Thus, we produce long-lasting vibration motors for our customers. For our vibration motor bearings, we use long-lasting, high-strength greases against high centrifugal forces, stress caused by vibration, and abrasions that may occur from loads on bearing internal grains. We use labyrinth type channels and oil seals to ensure that the grease runs in the bearings without any leakage.

AVIBRO Vibration Motors On Demand Manufacturing We Offer

Pre-heaters
Stainless side covers Cr
Different foot-prints for your special applications

design productions

ADX 2 poles 3000 rpm-50Hz / 3600 rpm-60Hz

Model / Type	Gövde / Size	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 50Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 60Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 50Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 60Hz	(*) Statik Moment / Statical Moment (Kgmm) 50Hz	(*) Statik Moment / Statical Moment (Kgmm) 60Hz	Ağırlık / Weight (Kg) 50Hz	Ağırlık / Weight (Kg) 60Hz	Giriş Gücü / Input Power (W) 50Hz	Giriş Gücü / Input Power (W) 60Hz	Nominal Akım / Nom. Current (A) 400V 50Hz	Nominal Akım / Nom. Current (A) 460V 60Hz	IA / IN 50Hz 220V 50Hz	IA / IN 60Hz 115V 60Hz
ADX 300/3	20	323	281	3,16	2,75	32,1	19,4	11,8	11,1	260	270	0,60	0,50	3,47	4,20
ADX 500/3	30A	565	552	5,54	5,41	56,2	38,1	17,1	16,2	450	500	0,80	0,75	4,21	4,80
ADX 800/3	40A	797	866	7,81	8,49	79,2	59,8	29,8	29,2	650	685	1,10	1,00	3,83	6,00
ADX 1100/3	40A	1195	1127	11,72	11,05	118,8	77,8	30,8	29,9	600	710	0,90	0,93	4,78	4,96
ADX 1600/3	50A	1655	1702	16,23	16,69	164,5	117,4	56,6	53,5	1000	1200	1,62	1,72	6,00	6,32
ADX 2000/3	50A	2045	2155	20,06	21,14	203,2	148,7	62,4	60,9	1000	1260	1,71	1,85	6,95	7,19
ADX 2300/3	50A	2316	2392	22,72	23,46	230,2	165,1	63,2	61,1	2000	2200	3,23	3,20	7,47	8,60
ADX 2500/3	60A	2584	2566	25,84	25,17	256,8	177,1	82,6	79,6	2500	2400	3,80	3,50	4,86	5,72
ADX 3300/3	70A	3548	3322	34,80	32,5	352,7	229,3	108,5	104,4	3100	3250	5,23	5,00	6,37	8,00
ADX 5000/3	80A	5188	6101	50,89	59,85	515,7	421,1	145	140	4500	4500	7,13	6,60	6,53	7,00

ADX 2 poles 3000 rpm-50Hz / 3600 rpm-60Hz

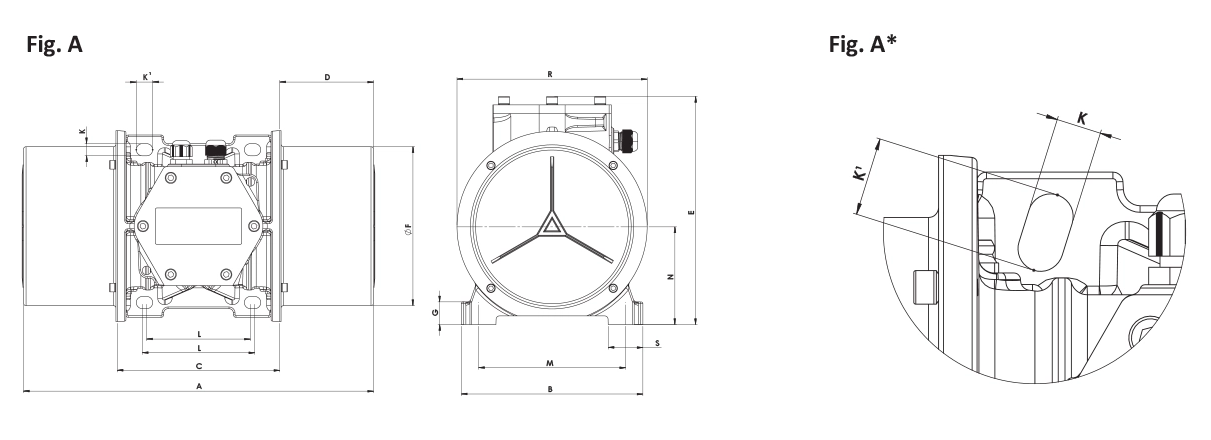

Model / Type	Gövde / Size	Fig	A	B	C	D	E	ØF	R	L	M	ØK	ØK	K¹	G	S	N
ADX 300/3	20	B	289	150,5	134	77,5	213,5	128	150	90	125	13,5	4	-	20	27	74,5
ADX 500/3	30A	A*	286	190	153	66,5	240,5	155	185	100÷105	140÷160	12	4	22,5	22	38	93,5
ADX 800/3	40A	B	363	210	188	87,5	263	183	220	120	170	17	4	-	26	37	112,5
ADX 1100/3	40A	B	363	210	188	87,5	263	183	220	120	170	17	4	-	26	37	112,5
ADX 1600/3	50A	A	466	230	226	120	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 2000/3	50A	A	466	230	226	120	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 2300/3	50A	A	466	230	226	120	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 2500/3	60A	C	544	269	260	142	295	244	282	155	225	22	4	-	25	53,5	133
ADX 3000/3	70A	C	554	315	290	132	333	284	327	155	255	22	4	-	30	65,5	160
ADX 5000/3	80A	C	631	340	334	148,5	352	309	360	180	280	25	4	-	35	77	172

ADX 4 poles 1500 rpm-50Hz / 1800 rpm-60Hz

Model / Type	Gövde / Size	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 50Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 60Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 50Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 60Hz	(*) Statik Moment / Statical Moment (Kgmm) 50Hz	(*) Statik Moment / Statical Moment (Kgmm) 60Hz	Ağırlık / Weight (Kg) 50Hz	Ağırlık / Weight (Kg) 60Hz	Giriş Gücü / Input Power (W) 50Hz	Giriş Gücü / Input Power (W) 60Hz	Nominal Akım / Nom. Current (A) 400V 50Hz	Nominal Akım / Nom. Current (A) 460V 60Hz	IA / IN 50Hz 220V 50Hz	IA / IN 60Hz 115V 60Hz
ADX 200/15	20	210	207	2,06	2,03	83,5	57,1	13,8	12,7	170	170	0,41	0,40	2,34	2,75
ADX 400/15	30B	421	439	4,13	4,30	167,4	121,2	20,1	18,7	300	350	0,60	0,60	3,33	3,50
ADX 520/15	30B	546	609	5,35	5,97	217,1	168,1	21,5	20,1	300	350	0,60	0,60	3,33	3,50
ADX 750/15	40B	743	700	7,29	6,86	295,4	193,2	34,5	32,0	525	665	0,92	0,98	3,48	3,43
ADX 1100/15	40B	1127	1067	11,05	10,46	448,1	294,6	42,0	34,1	520	660	0,81	0,88	4,65	4,84
ADX 1500/15	50A	1523	1655	14,94	16,23	605,5	456,9	64,5	60,5	750	1000	1,35	1,50	5,59	5,60
ADX 1800/15	50A	1833	1916	17,98	18,79	728,7	529,1	69,0	67,0	1050	1300	1,81	1,90	5,09	5,46
ADX 2000/15	50B	2137	2166	20,96	21,24	849,6	598,1	74,0	68,0	1050	1300	1,81	1,90	5,09	5,46
ADX 2450/15	60A	2574	2502	25,26	24,54	1023,3	690,8	86,5	81,5	1500	1650	2,95	2,90	7,80	7,76
ADX 3100/15	60A	3360	3243	32,96	31,81	1335,8	895,4	91,0	85,0	2000	2100	3,70	3,50	6,48	7,45
ADX 3100/15-CC	60A	2926	--	28,70	--	1163,5	--	89,5	--	2000	--	3,70	--	6,48	--
ADX 3800/15	70A	3859	3802	37,85	37,29	1534,2	1049,7	117,0	112,0	2270	2250	3,80	3,50	6,84	8,09
ADX 3800/15-CC	70A	3908	--	38,33	--	1554,1	--	112,5	--	2270	--	3,80	--	6,84	--
ADX 3800/15-6	70A	3859	3802	37,85	37,29	1534,2	1049,7	117,0	112,0	2270	2250	3,80	3,50	6,84	8,09
ADX 3800/15-6 CC	70A	3908	--	38,33	--	1554,1	--	112,5	--	2270	--	3,80	--	6,84	--
ADX 5000/15	80A	5926	6367	58,13	62,46	2356,1	1757,9	179,0	169,0	3140	3130	5,40	4,85	7,82	9,90

ADX 4 poles 1500 rpm-50Hz / 1800 rpm-60Hz

Model / Type	Gövde / Size	Fig	A	B	C	D	E	ØF	R	L	M	ØK	ØK	K¹	G	S	N
ADX 200/15	20	B	289	150,5	134	77,5	213,5	128	150	90	125	13,5	4	-	20	27	74,5
ADX 400/15	30B	A*	322	190	153	84,5	240,5	155	185	100÷105	140÷160	12	4	22,5	22	38	93,5
ADX 520/15	30B	A*	322	190	153	84,5	240,5	155	185	100÷105	140÷160	12	4	22,5	22	38	93,5
ADX 750/15	40B	B	405	210	188	108,5	263	183	220	120	170	17	4	-	26	37	112,5
ADX 1100/15	40B	B	405	210	188	108,5	263	183	220	120	170	17	4	-	26	37	112,5
ADX 1500/15	50A	A	466	230	226	120	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 1800/15	50A	A	466	230	226	120	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 2000/15	50B	A	520	230	226	147	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 2450/15	60A	C	544	269	260	142	295	244	282	155	225	22	4	-	25	53,5	133
ADX 3100/15	60A	C	544	269	260	142	295	244	282	155	225	22	4	-	25	53,5	133
ADX 3100/15 CC	60A	C	564	269	260	152	295	244	282	155	225	22	4	-	25	53,5	133
ADX 3800/15	70A	C	554	315	290	132	333	284	327	155	255	22	4	-	30	65,5	160
ADX 3800/15 CC	70A	C	594	315	290	152	333	284	327	155	255	22	6	-	30	65,5	160
ADX 3800/15-6	70A	D	554	315	290	132	333	284	327	105x2	248	22	4	-	30	65,5	160
ADX 3800/15-6 CC	70A	D	594	315	290	152	333	284	327	105x2	248	22	4	-	30	65,5	160
ADX 5000/15	80A	C	631	340	334	148,5	352	309	360	180	280	25	4	-	35	77	172

ADX 6 poles 1000 rpm-50Hz / 1200 rpm-60Hz

Model / Type	Gövde / Size	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 50Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 60Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 50Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 60Hz	(*) Statik Moment / Statical Moment (Kgmm) 50Hz	(*) Statik Moment / Statical Moment (Kgmm) 60Hz	Ağırlık / Weight (Kg) 50Hz	Ağırlık / Weight (Kg) 60Hz	Giriş Gücü / Input Power (W) 50Hz	Giriş Gücü / Input Power (W) 60Hz	Nominal Akım / Nom. Current (A) 400V 50Hz	Nominal Akım / Nom. Current (A) 460V 60Hz	IA / IN 50Hz 220V 50Hz	IA / IN 60Hz 115V 60Hz
ADX 35/10	20	35	49	0,33	0,47	30,1	30,1	11,5	11,5	120	135	0,30	0,30	1,90	2,07
ADX 100/10	20	94,3	136	0,92	1,33	84,2	84,2	14	14	120	135	0,30	0,30	1,90	2,07
ADX 200/10	30B	189	258	1,85	2,53	169,1	160,2	21,5	21,5	185	205	0,50	0,50	2,72	3,10
ADX 390/10	40B	318	446	3,12	4,37	284,5	277,1	35,0	34,0	350	380	0,72	0,68	2,63	2,79
ADX 530/10	40B	597	639	5,85	6,26	534,1	396,9	39,5	37,5	300	310	0,57	0,61	3,89	3,77
ADX 750/10	50A	814	861	7,98	8,44	728,2	534,8	70,0	65,0	570	680	1,24	1,30	4,00	3,69
ADX 1110/10	50B	1067	1190	10,46	11,66	954,4	739,3	78,5	71,5	700	870	1,52	1,65	4,15	4,24
ADX 1700/10	60B	1683	1708	16,51	16,75	1505,5	1061,1	87,5	80,0	1040	1250	2,09	2,10	4,93	5,24
ADX 3000/10	70B	3144	3281	30,84	32,18	2812,5	2038,2	165,0	151,0	1725	1800	3,80	3,70	5,40	6,03
ADX 4500/10	80B	4211	4587	41,31	44,99	3767,0	2849,5	202,0	192,0	2100	2300	4,75	4,75	4,19	4,67
ADX 22500/10	120B	22540	20362	221,12	199,75	20162,8	12628,5	1025	995	15600	19000	25,2	25,5	5,70	5,88
ADX 25500/10	120B	25300	24100	248,19	236,42	22632,4	14971,4	1050	1027	19000	19000	33,00	25,50	4,68	--
ADX 30000/10	120B	30575	30240	299,94	296,55	27351,1	18787,6	1315	1065	24000	25800	40,00	38,00	4,90	5,40

ADX 6 poles 1000 rpm-50Hz / 1200 rpm-60Hz

Model / Type	Gövde / Size	Fig	A	B	C	D	E	ØF	R	L	M	ØK	ØK	K¹	G	S	N
ADX 35/10	20	B	289	150,5	134	77,5	213,5	128	150	90	125	13,5	4	-	20	27	74,5
ADX 100/10	20	B	289	150,5	134	77,5	213,5	128	150	90	125	13,5	4	-	20	27	74,5
ADX 200/10	30B	A*	322	190	153	84,5	240,5	155	185	100÷105	140÷160	12	4	22,5	22	38	93,5
ADX 390/10	40B	B	405	210	188	108,5	263	183	220	120	170	17	4	-	26	37	112,5
ADX 530/10	40B	B	405	210	188	108,5	263	183	220	120	170	17	4	-	26	37	112,5
ADX 750/10	50A	A	466	230	226	120	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 1110/10	50B	A	520	230	226	147	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 1700/10	60B	C	604	269	260	172	295	244	282	155	225	22	4	-	25	53,5	133
ADX 3000/10	70B	C	634	315	290	172	333	284	327	155	255	22	4	-	30	65,5	160
ADX 4500/10	80B	C	773	340	334	219,5	352	309	360	180	280	25	4		35	77	172
ADX 22500/10	120B	E	1200	700	585	305	655	596	670	140x3	600	45	8	-	45	140	320
ADX 25500/10	120B	E	1200	700	585	305	655	596	670	140x3	600	45	8	-	45	140	320
ADX 30000/10	120B	E	1200	700	585	305	655	596	670	140x3	600	45	8	-	45	140	320

ADX 2 poles 750 rpm-50Hz / 3600 rpm-60Hz

Model / Type	Gövde / Size	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 50Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 60Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 50Hz	Santrifüj Kuvveti / Centrifugal Force (Kg/F) 60Hz	(*) Statik Moment / Statical Moment (Kgmm) 50Hz	(*) Statik Moment / Statical Moment (Kgmm) 60Hz	Ağırlık / Weight (Kg) 50Hz	Ağırlık / Weight (Kg) 60Hz	Giriş Gücü / Input Power (W) 50Hz	Giriş Gücü / Input Power (W) 60Hz	Nominal Akım / Nom. Current (A) 400V 50Hz	Nominal Akım / Nom. Current (A) 460V 60Hz	IA / IN 50Hz 220V 50Hz	IA / IN 60Hz 115V 60Hz
ADX 120/75	30B	106	141	1,04	1,38	168,5	155,7	21,0	21,0	230	250	0,85	0,76	2,13	2,11
ADX 210/75	40B	178	241	1,74	2,36	283,1	266,2	30,0	30,0	350	380	1,10	1,05	2,03	2,29
ADX 330/75	40B	281	396	2,75	3,88	446,8	437,3	41,1	41,1	300	300	0,57	0,58	2,47	2,50
ADX 500/75	50A	458	601	4,49	5,89	728,3	663,7	70,0	70,0	340	340	0,87	0,90	2,87	3,11
ADX 950/75	50B	686	991	6,73	9,72	1090,9	1094,4	76,0	76,0	420	500	1,00	1,10	2,91	2,91
ADX 1200/75	60B	1081	1467	10,60	14,39	1719,1	1620,2	109	109,0	750	850	1,52	1,90	3,68	3,05
ADX 2000/75	70B	1769	2296	17,35	22,52	2813,3	2535,7	145,0	145,0	1480	1500	3,52	3,45	3,58	3,91
ADX 3200/75	80B	2533	3774	24,84	37,02	4028,3	4168,0	195,0	195,0	1850	2100	4,85	5,00	4,21	4,70
ADX 22500/75	120B	18200	22392	178,54	219,67	28943,1	24727,9	1120,0	1086,0	12500	16200	26,50	28,00	5,63	4,71
ADX 25500/75	120B	--	25950	--	254,57	--	28658,4	--	1027,0	--	16200	--	28,00	5,63	4,71
ADX 30000/75	120B	21100	30460	206,99	298,81	33487,3	33472,9	1230,0	1265,0	--	--	--	--	5,63	4,71

ADX 2 poles 750 rpm-50Hz / 3600 rpm-60Hz

Model / Type	Gövde / Size	Fig	A	B	C	D	E	ØF	R	L	M	ØK	ØK	K¹	G	S	N
ADX 120/75	30B	A*	322	190	153	84,5	240,5	155	185	100 ÷ 105	140÷160	12	4	22,5	22	38	93,5
ADX 210/75	40B	B	405	210	188	108,5	263	183	220	120	170	17	4	-	26	37	112,5
ADX 330/75	40B	B	405	210	188	108,5	263	183	220	120	170	17	4	-	26	37	112,5
ADX 500/75	50A	A	466	230	226	120	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 950/75	50B	A	520	230	226	147	274,5	220	260	140÷150	190	18,5	4	23,5	27	50,5	120,5
ADX 1200/75	60B	C	604	269	260	172	295	244	282	155	225	22	4	-	25	53,5	133
ADX 2000/75	70B	C	634	315	290	172	333	284	327	155	255	22	4	-	30	65,5	160
ADX 3200/75	80B	C	773	340	334	219,5	352	309	360	180	280	25	4		35	77	172
ADX 22500/75	120B	E	1200	700	585	305	655	596	670	140x3	600	45	8	-	45	140	320
ADX 25500/75	120B	E	1200	700	585	305	655	596	670	140x3	600	45	8	-	45	140	320
ADX 30000/75	120B	E	1200	700	585	305	655	596	670	140x3	600	45	8	-	45	140	320
